Very Narrow Aisle (VNA) Pallet Racking for Warehouse Storage

Product Model: VNA001
VNA Pallet Racking is CE & ISO certified. High quality and low price, welcome to place order!
  • Detailed description

Very Narrow Aisle (VNA) Pallet Racking for Warehouse Storage

Breaf Introduction

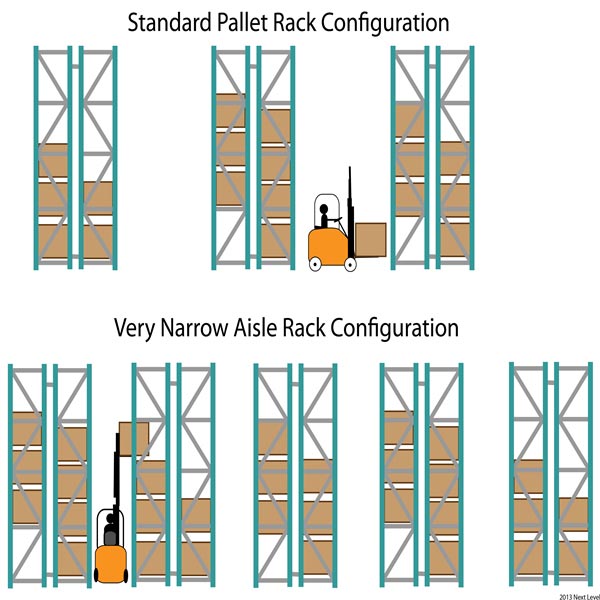

    •  Warehouse capacity can be increase by an additional 40% over Selective Pallet Racking by increasing operational height and the reduction of operation aisle.


    •  Designed to meet the new generation of distribution centers up to 17 meters high, requires a super flat floor.


Features & Advantages


    •  Good stock rotation


    •  Good order picking: 100% selectivity


    •  Fast picking rate


    •  Good product protection


    •  50% net pallet area usage of overall warehouse area


     Limited pallet redundancy as system can run at 95%+ capacity


      Uses guide rails or wire guidance for fast movement in aisle

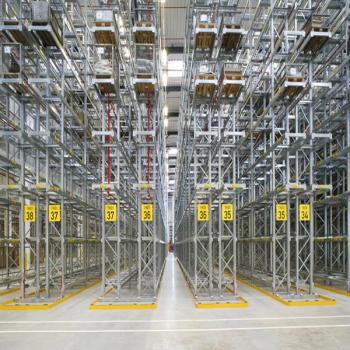

vna pallet rack

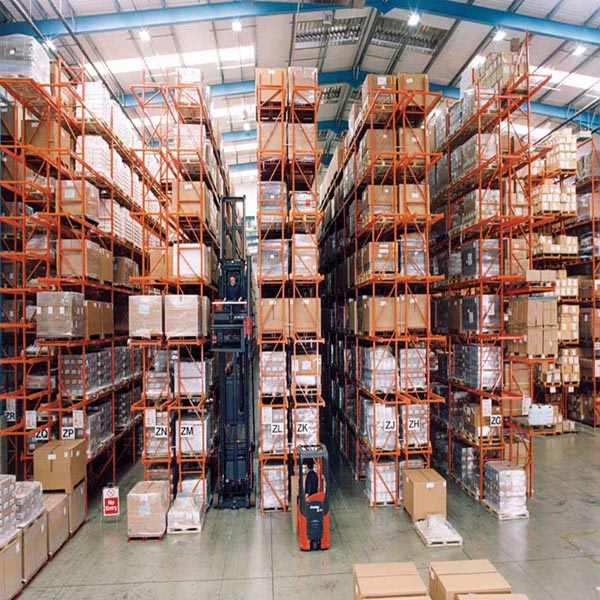

very narrow aisle pallet racking






vna pallet rack





Warehouse racking system Beam Post Distributed Loading Chart
UPRIGHT LOADING TABLE
  80x60x1.8           8500KG/BAY
  80x60x2.0          9400KG/BAY   100x70x1.8       11800KG/BAY
  90x70x1.8         10000KG/BAY   100x70x2.0        13500KG/BAY
  90x70x2.0         11800KG/BAY   100x70x2.3        15000KG/BAY
  90x70x2.5         15000KG/BAY   100x70x2.5        16300KG/BAY
BOX BEAM LOADING TABLE
Beam length (mm) 80*50*1.5 100*40*1.5 100*50*1.5 110*50*1.5 120*40*1.5 120*50*1.5 140*40*1.4 140*50*1.5 160*40*1.5 160*50*1.5
1500 4286
1800 2977
1900 2672 3809 4535
2200 1993 2841 3382 4219
2300 1823 2599 3095 3860 3918 4665
2400 1674 2387 2842 3545 3598 4284
2500 1403 2000 2381 2970 3014 3598 4340 5160
2600 1297 1849 2201 2745 2787 3318 4010 4771
2700 1203 1715 2041 2546 2584 3077 3716 4425 5068 6033
3000 974 1389 1655 2065 2093 2492 3010 3585 4105 4887
3300 708 1010 1202 1500 1522 1812 2189 2610 2985 3555
3600 600 849 1010 1260 1279 1523 1839 2190 2508 2986
3800 540 762 907 1135 1148 1369 1658 1965 2251 2680
4000 485 687 818 1024 1036 1235 1550 1774 2032
2419
