2000 KG loading capacity container wire cages

2000KG loading capacity container wire cages

One. Main features of sturdy cage wire mesh
1. Surface treatment:  Zinc plated
2. Available in 5 to 14mm galvanized welded mesh
3. Legs are wrapped and welded around the based-no edges to scratch floors or people
4. Double wire reinforcements at load-bearing surface and top edges
5. Base inside walls protect content from damage
6. Open wire mesh design allows for full visibility for inventory checks, ventilation and cleanliness
7. Good appearance and cleanness Adapts patented technology, with new pattern and unique design, Can also design and produce commercial storage equipment of various specifications according to customer's requirements

8. Offers overall arrangement for all kinds of markets and warehouses

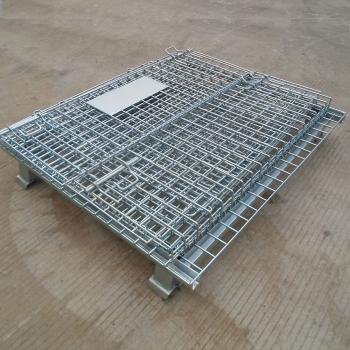

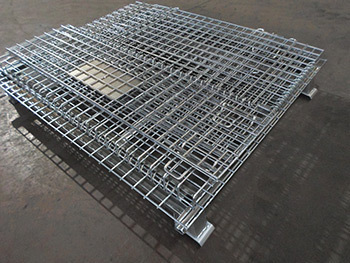

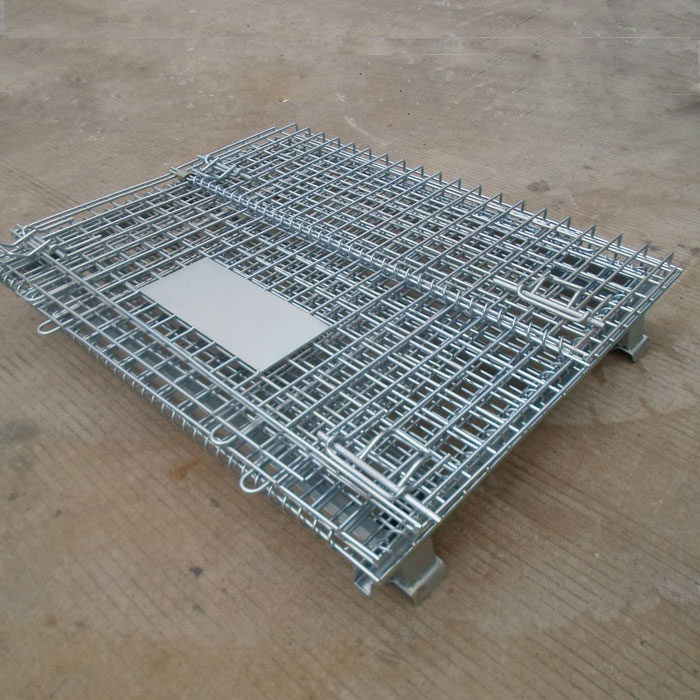

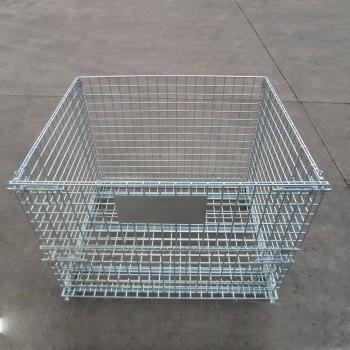

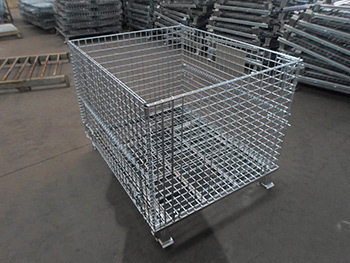

Two. cage wire mesh pictures

The flexible safety locking bolts guarantee the safe and reliable loading for mesh container to prevent goods from horizontally throwing out.

Reinforced slices in both sides and also the flexible connection strap are convenient for rapid folding and unfolding.

Reinforced U type channel prevents the structure from transforming while loading, and keep the goods safer.

Multi-angles square-stack legs provide strong support ability of more pieces in one stack.

Length(mm)	Width(mm)	Height (mm)	Capacity (kg)	Volume (m3)	Wire dia.(mm)	Leg height(mm)	Mesh grid (mm)
800	600	650	700	0.22	6	100	50*50
800	600	650	500	0.22	6	100	50*100
1000	800	850	1200	0.51	6	100	50*50
1000	800	850	800	0.51	6	100	50*100
1200	1000	900	1500	0.84	6	100	50*50
1200	1000	900	800	0.84	6	100	50*100
800	600	650	800	0.22	6.4	100	50*50
800	600	650	600	0.22	6.4	100	50*100
1000	800	850	1500	0.51	6.4	100	50*50
1000	800	850	1000	0.51	6.4	100	50*100
1200	1000	900	2000	0.84	6.4	100	50*50
1200	1000	900	1000	0.84	6.4	100	50*100

Remarks: Regarding wire mesh cage
Aceally can supply standard, Europe and United States storage cages. We have variety of models and sizes available for customers to choose, OEM &ODM acceptable.
