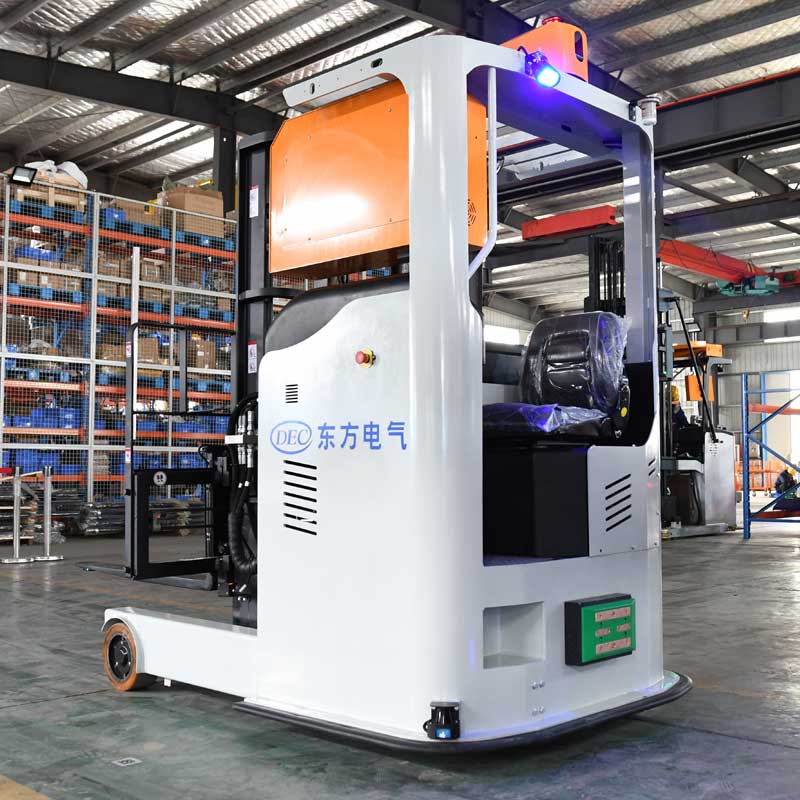

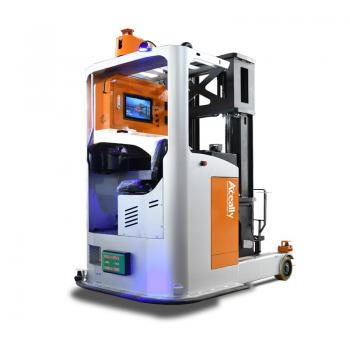

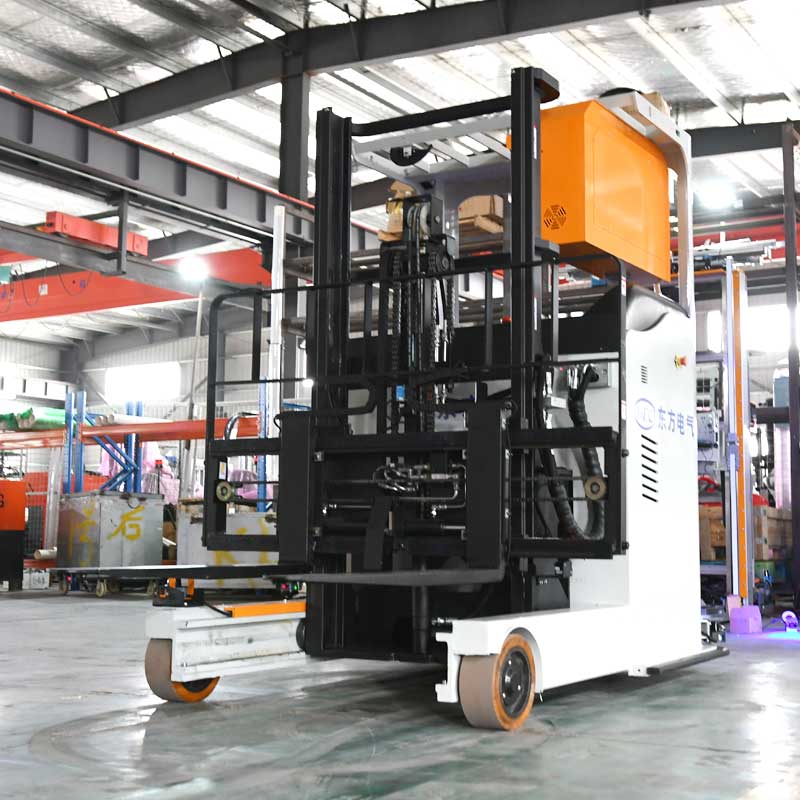

Large Forward Stacking Mobile Robot Forklift AGV

Large Forward Stacking Mobile Robot Forklift AGV

The gantry or fork of the reach-type forklift AGV can move forward and backward, and the front wheels can be extended to pick up and place goods. When walking, the fork carrying the goods retracts so that the center of gravity of the goods is located within the support surface; the reach-type forklift has two extended legs, which can provide stability.

Performance characteristics

1. The channel is narrow, the lift is high, and the operation accuracy is high. It can realize the precise positioning of the unmanned forklift in the natural environment. It is equipped with a highly sensitive sensing module.

2. It has vehicle detection and cargo placement detection functions, adaptive precision forks, materials, and repeated cargo placement accuracy of ±10mm;

Fast charging, long battery life, flexible operation, flexible use, suitable for a variety of places;

3. The body is equipped with multiple protection and alarm devices, making it safer to use;

Smart applications can be customized according to customer needs.

Name	Large forward forklift AGV
Navigation Mode	Fusion Navigation+GPS
Communication Mode	wifi/5G
Rated Load Capacity	2000kg
Lifting Height	4500mm
Orientation Accuracy	±10mm
Minimum Ground Clearance	70mm
Charging Method	Automatic + manual
Driving Direction	Forward, back, and turn
Battery Info	48V/320Ah
Safety	Laser Obstacle Avoidance
	Remote Emergency Stop
	Mechanical collision avoidance
	Fork collision avoidance
Alarm Mode	Light Alarm, Voice Alarm
Driving Method	Steering Wheel Drive
Load Center	500mm
Stacking channel (Pallet 800x800)(1200 Span Fork Placement)	2965mm
Move Speed	1.0m/s
MinimumTurning Radius	2010mm
Reach distance	655mm
Fork Size	40/122/1070mm
Overall Size (length / width)	2795/1510mm
Self Weigh	3600kg
Vehicle height	2345mm
Maximum lift height (according to the possible height identification)	8000mm
Vehicle Projection Area	3.24㎡
Note: The width data of the stacking passage do not include safety distance. The above parameters are for reference only. Understanding is appreciated if technical changes are not notified.
