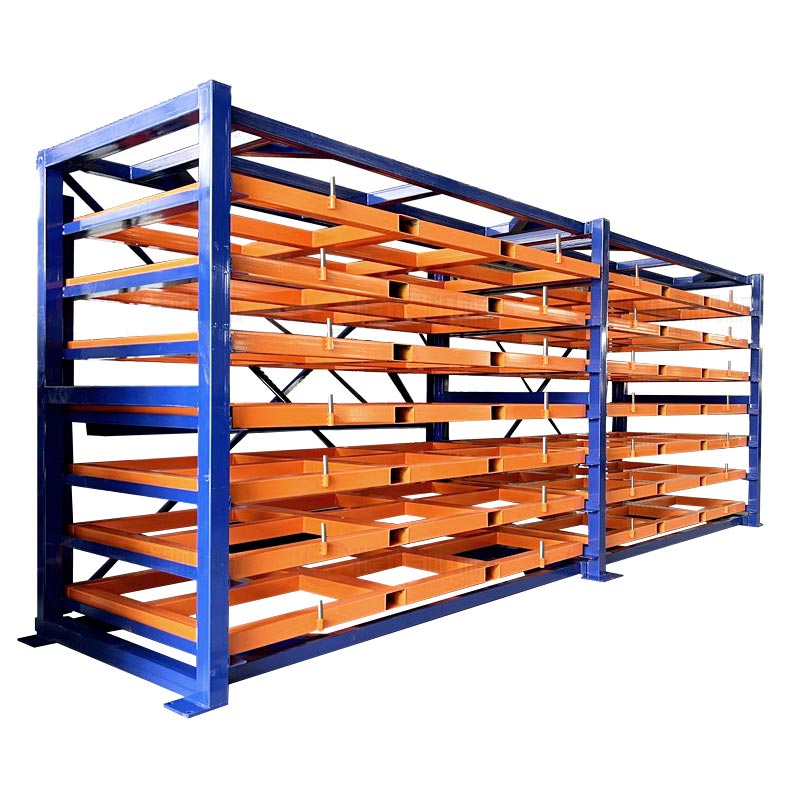

Metal Sheet Racking Shelves

Metal Sheet Racking Shelves

1. Professional design team, drawer-type design
2. Mechanical assistance, saving manpower
3. Large load capacity, 3 tons-8 tons/layer
4. Multi-layer design, classified storage
5. Optional electric, customized on demand

Product Description

Multi-layer storage:

Steel plates are stored in layers and categories on the same set of shelves. Dozens of specifications of steel plates are stored on the shelves, and the factory instantly becomes spacious, neat and bright;

Classification storage:

Multi-layer classification storage is not affected by the upper or lower layers, making storage and access more convenient, small space, high storage capacity, and classification storage and access more convenient; steel plate storage racks can also protect the plates and prevent the loss of steel plates during transportation, especially precious metal plates from scratches, scrapes, curling, etc.

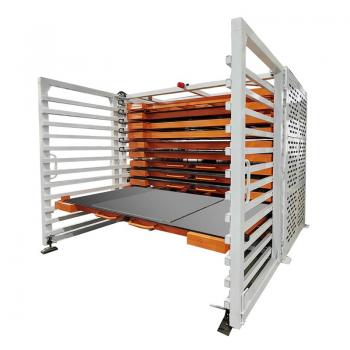

Drawer structure:

Mechanical power-assisted design, each layer of drawers is pulled out separately, which is convenient for the storage and access of steel plates, saving time and effort; the drawers are pulled out with high standards and easy to operate.

Save storage space:

Steel plates stored on the ground take up a lot of space, saving a lot of factory space, no forklifts or industrial lanes are needed, and overhead cranes are used to store and retrieve steel plates, saving space;

Efficient, convenient and fast:

With overhead cranes for storage and retrieval, it saves manpower, and one person can complete all operations, with fast storage and retrieval speed, saving time,

The goods are clear at a glance, stored quickly, and there is no need to sort and move them repeatedly, making storage and retrieval fast and efficient.

High safety: Under conventional storage, steel plates of various specifications are stacked in a disorderly manner and are easy to slide. Employees need to search and hoist, which can easily cause personal injury. After using drawer steel plate shelves, the materials are instantly clear and avoid industrial accidents.

Roll Out Sheet Metal Rack Parameter

Item	Standard		Customized
Storage Sheet Size	3000*1500mm	6000*1500mm	Customized
Loading  Per layer	3tons	3tons	Max 10tons per layer
NO of Drawer	7	6	2-10 pcs available
Distance between two layers	110mm	180mm	Customized
Operation System	Mechanical	Mechanical	Mechanical or Automatic
Color of Rack	Orange/Blue	Orange/Blue	Customized Color
